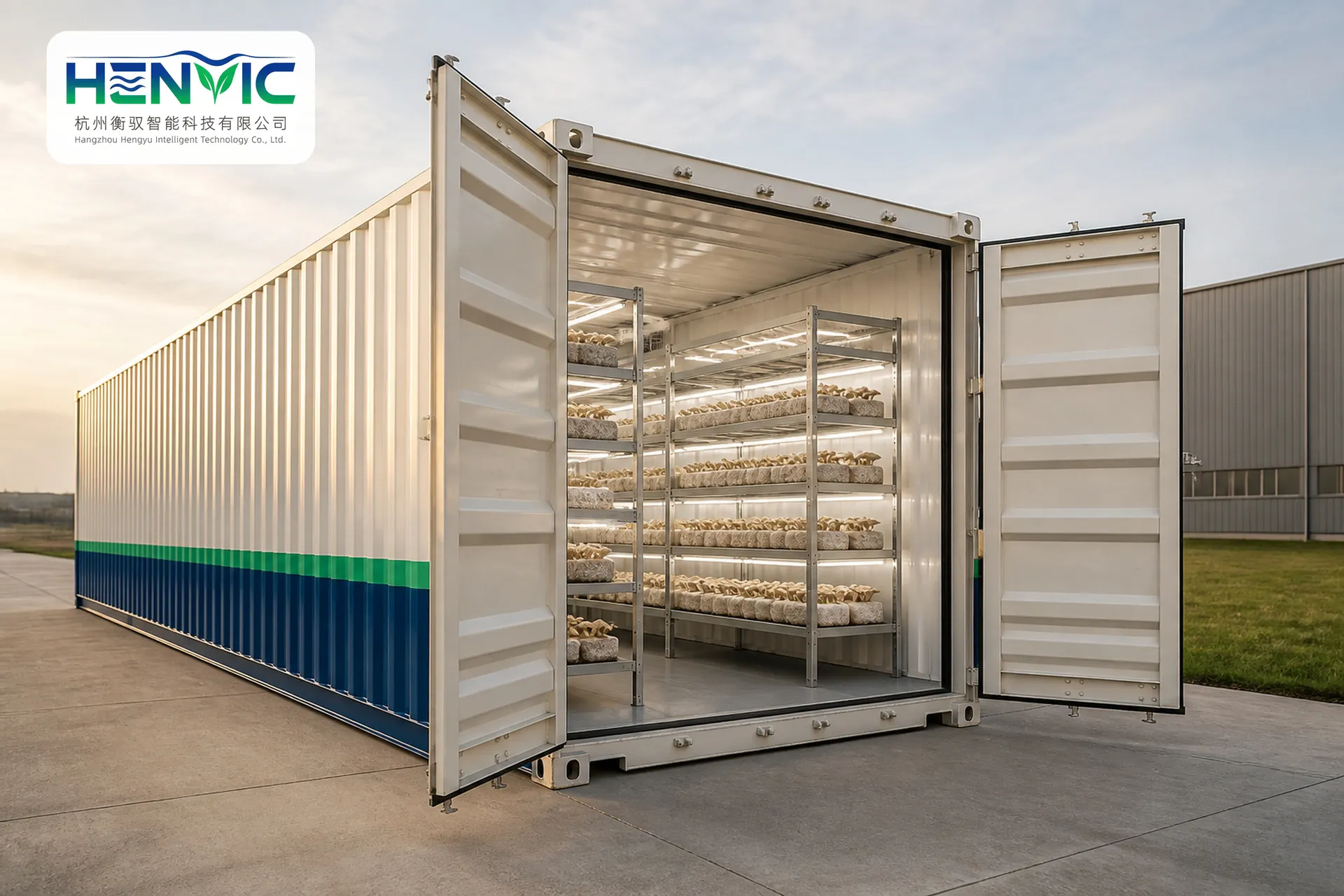

Red Button Mushroom Industrialized Cultivation Container
Product illustration: images/mushroom/HVC-M07.jpg (Night-time operation appearance)
I. Product Overview
The HVC-M07 is designed for the industrial-scale cultivation of Pleurotus ostreatus, employing a medium-temperature, constant-humidity combined with diffused light control system that balances the development of robust mushroom stems with optimal cap morphology. The unit supports a nighttime low-load operation mode; when paired with the chamber's high-insulation enclosure, this design reduces energy consumption during continuous production.
II. Core Competencies
● Insulation and building envelope energy efficiency: Polyurethane insulation boards combined with a thermal break structure significantly reduce nighttime energy consumption.
● Scattered light formula: Side-directed diffuse lighting ensures uniform coloring of the mushroom cap, preventing localized overexposure.
● Day-Night Formula Switching: Automatically switches between bud induction, growth, and harvest stage formulas based on the production schedule.
● Low-noise operation: The fan and turbine are designed with noise reduction features, making them suitable for industrial environments in suburban and urban areas.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Effective cultivation area | 50–60 m² |
Temperature control range | 12–18 ℃（±0.5 ℃） |
relative humidity | 85%–90% RH |
beam | 0–600 lux – Scattered light |
Box heat transfer coefficient | ≤0.35 W/(m²·K) |
installed power | 10–14 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration

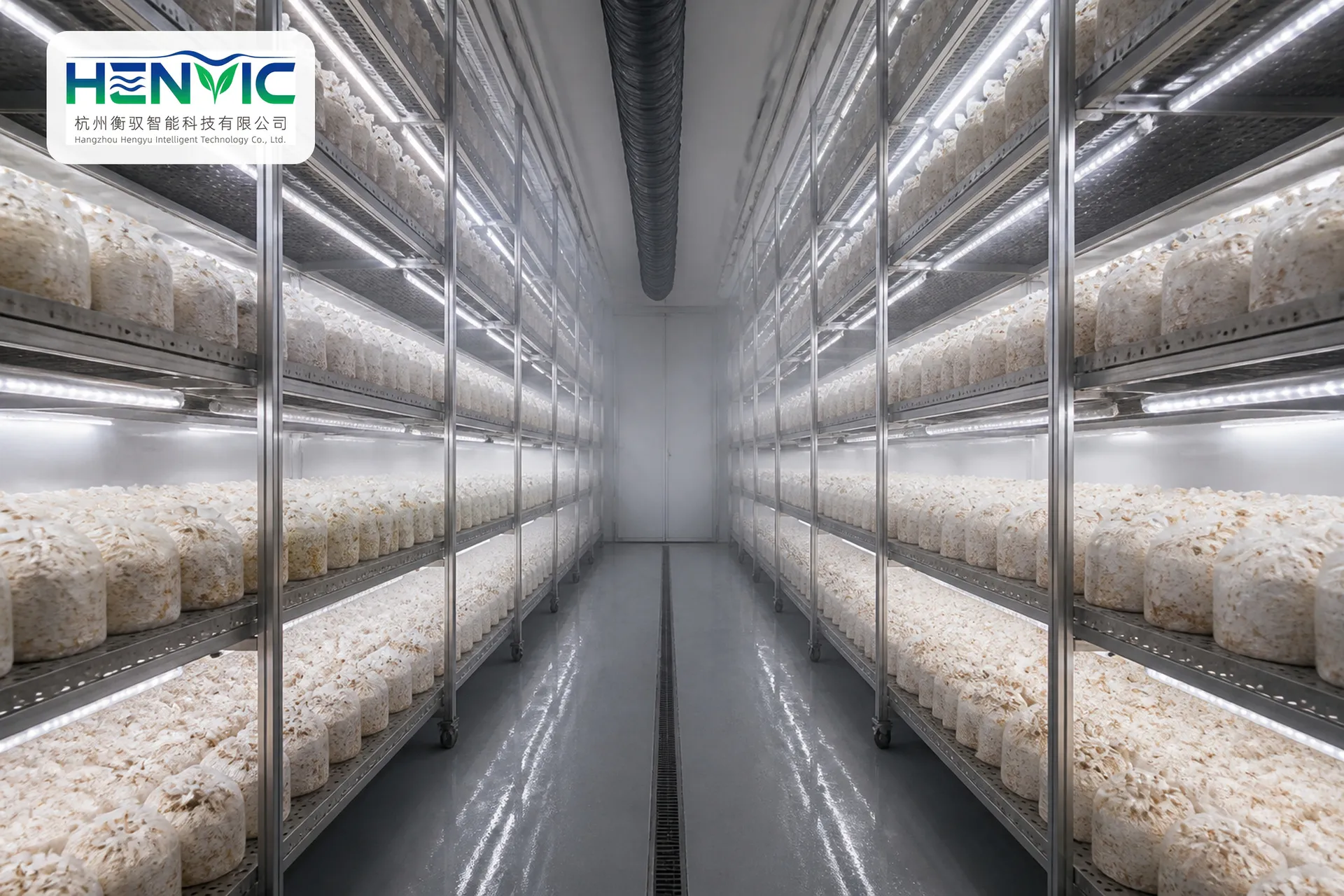

High-insulation enclosure; variable-frequency constant-temperature and constant-humidity unit; lateral diffusing LED light strip; atomization humidification system; fresh air and internal air circulation system; multi-tier mushroom cultivation rack; low-noise fan; intelligent control cabinet.
V. Applicable Varieties
Large, mesophilic fleshy fungi such as king oyster mushrooms and white ling mushrooms.
VI.适用场景
Industrial cultivation base for king oyster mushrooms; supporting processing facilities for export mushrooms; fresh mushroom supply for suburban areas.
VII. Delivery and Installation
The entire unit is shipped from the factory; after on-site hoisting and installation, power and water supply commissioning takes approximately 3–5 working days; production scheduling and formula configuration training will be provided.
VIII. After-Sales Service
12-month overall warranty; includes energy efficiency diagnostics, consumable supply, and remote maintenance services.
