Lettuce Special Hydroponic Container

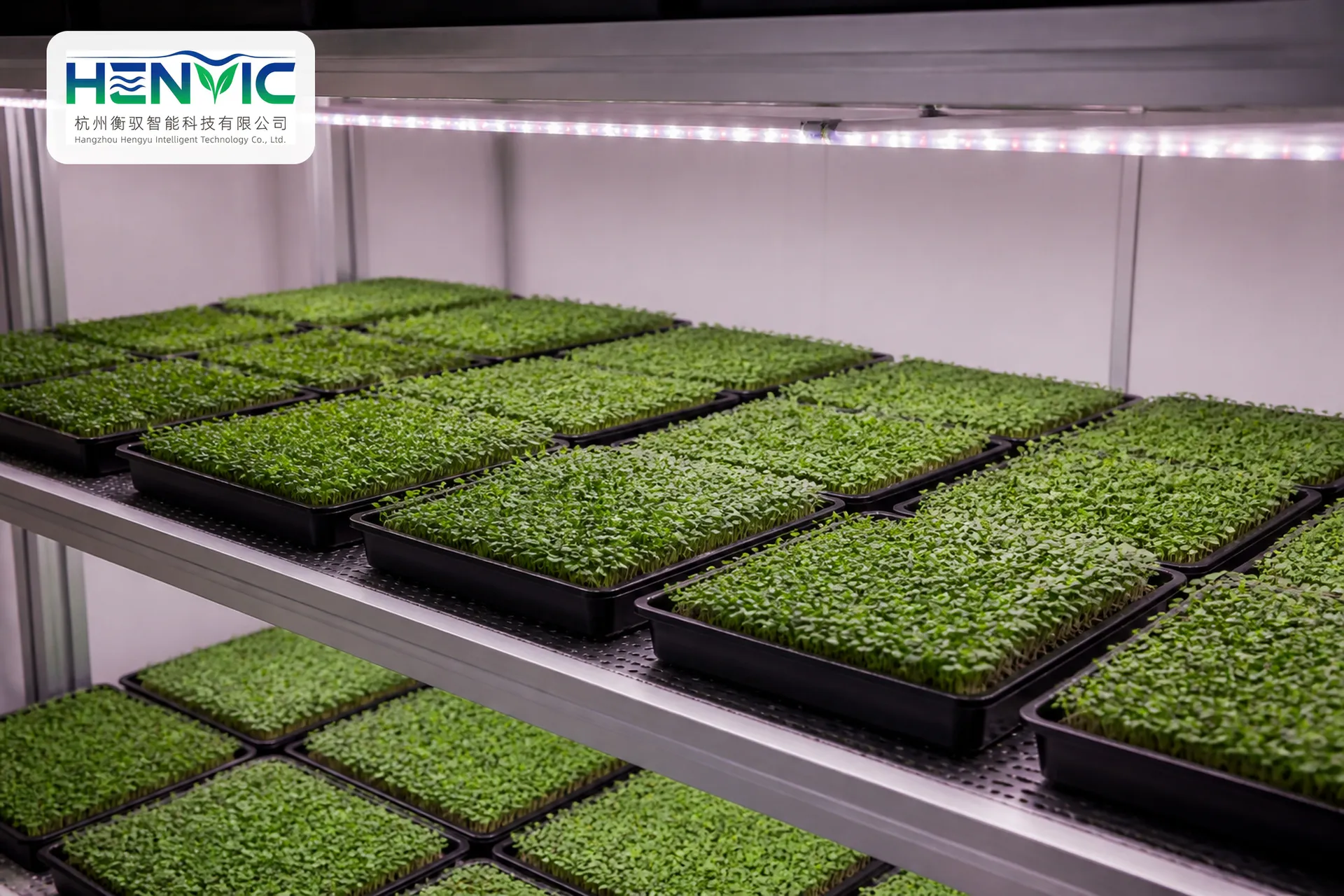

Product image: images/vegetable/HVC-V02.jpg (Open view of the indoor cultivation area)
I. Product Overview
The HVC-V02 is optimized for the growth characteristics of lettuce (leaf lettuce), employing NFT shallow liquid-flow cultivation combined with a low-temperature, high-light cultivation regimen, resulting in tender leaves and firm inner leaves. Its dual-door design facilitates frame-wide harvesting, making it ideal for standardized contract farming.
II. Core Competitive Advantages
● Low-temperature formulation: Maintaining a constant temperature around 18°C is more conducive to preserving the quality and texture of lettuce.
● Light spectrum optimization: The red, blue, and white light ratios are adjustable, promoting a compact plant architecture and suppressing bolting.
● Full-frame access: The cultivation hole plate can be interchangeably used with the harvesting basket, enabling fast harvesting and minimizing material loss.
● Cleanly prepared produce: Soilless cultivation eliminates the need for washing, allowing the products to be directly integrated into the pre-packaging workflow for ready-to-eat vegetables.
● ready-to-eat vegetables.
III. Typical Technical Specifications
project | parameter |
outline dimension | 12000 × 2438 × 2896 mm (40 feet) |
Number of cultivation layers | 4–5 layer |
Effective planting area | 90–120 m² |
growth cycle | 35–45 days (depending on the variety) |
Temperature control range | 16–22 ℃（±1 ℃） |
relative humidity | 60%–75% RH |
beam | LED 200–350 μmol/(m²·s) |
EC / pH | 1.2–1.8 mS/cm ｜ 5.8–6.2 |
installed power | 12–16 kW |
source | 380 V / 50 Hz Three-phase |
IV. System Configuration
NFT shallow flow cultivation rack; dual-door cabinet; circulation pump and nutrient solution disinfection system; automatic EC/pH-based fertilization system; red, blue, and white full-spectrum LED lighting; constant-temperature fresh air supply and dehumidification system; intelligent control cabinet and remote monitoring system.
V. Applicable Varieties
Various leaf lettuce varieties, including head lettuce, loose-leaf lettuce, Roman lettuce, and cream lettuce.
VI.适用场景
High-end supermarkets receive direct lettuce supply; restaurant chains are supplied with salad ingredients; and plant factories provide customized production services.
VII. Delivery and Installation
Delivered as a complete unit; commissioning is completed within 3–5 working days after on-site hoisting and power connection; operational instructions for planting, harvesting, and packaging are provided.
VIII. After-Sales Service
12-month overall warranty; includes product compatibility testing, formula optimization, and consumable supply.
