Celery Deep Liquid Flow Cultivation Container

Name: Celery Deep Liquid Flow Cultivation Container
Brand: Henvic
SKU: 1789703242671
Availability: InStock

Product illustration: images/vegetable/HVC-V05.jpg (Celery grown in a deep liquid culture tank)

I. Product Overview

Celery has a relatively long growing period and high water requirements. The HVC-V05 cultivar employs deep liquid flow cultivation combined with a high dissolved oxygen circulation system, supplemented by a prolonged nutrient supply strategy, enabling continuous harvesting after a single planting; the resulting leaves have tender stems and low fiber content.

II. Core Competitive Advantages

● Deep liquid flow irrigation:可控 root immersion depth ensures stable nutrient supply during extended cultivation periods.

● High dissolved oxygen circulation: Circulating aeration helps suppress root diseases and is suitable for long-season crops grown over a period of 60–80 days.

● Planting cup design: The planting cup facilitates individual plant adjustment and batch harvesting.

● Low-loss harvesting: Smooth material flow from the ground to the shelving facilitates whole-plant or staged harvesting.

III. Typical Technical Specifications

project	parameter

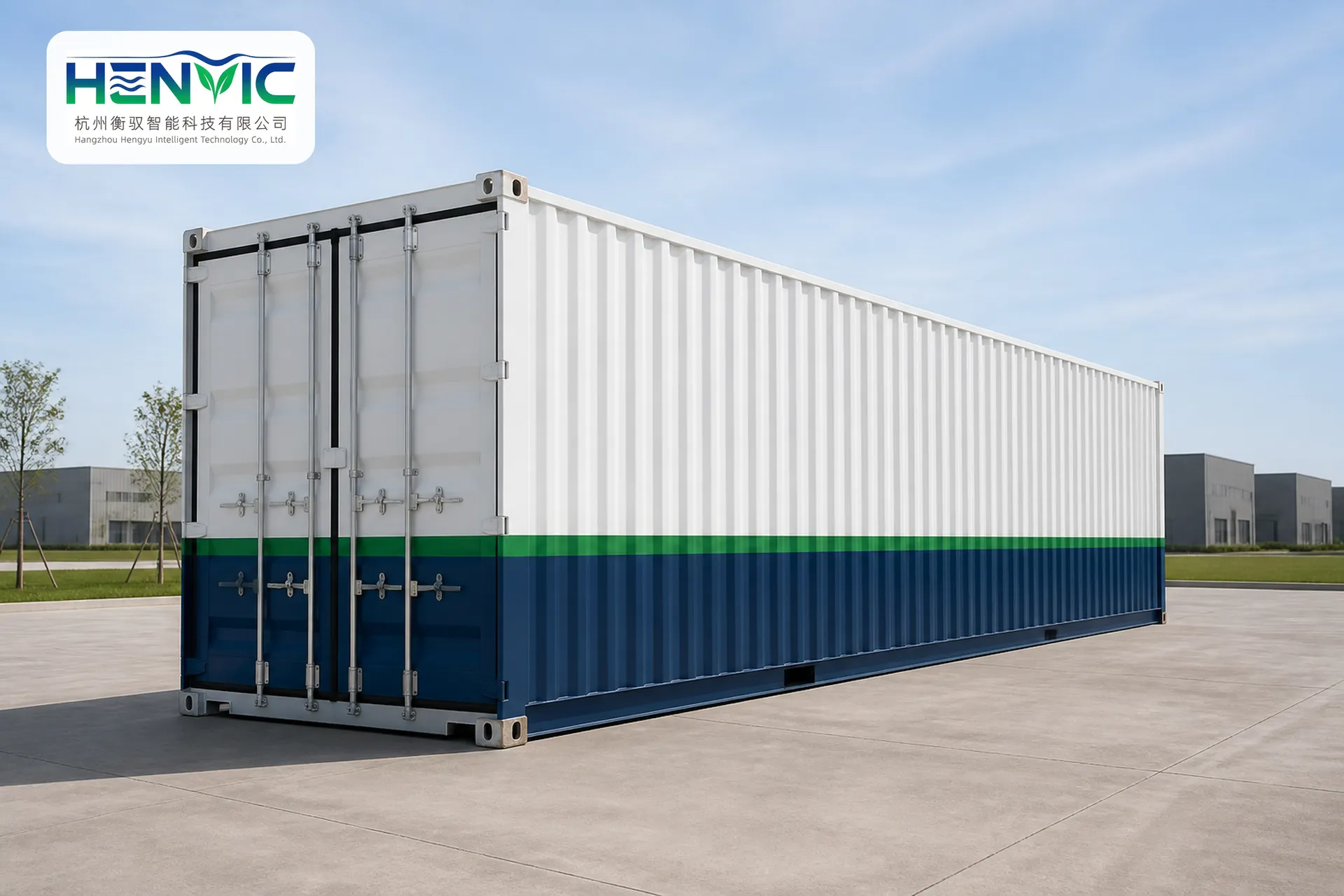

outline dimension	12000 × 2438 × 2896 mm (40 feet)
Number of cultivation layers	3–4 layer
Effective planting area	70–95 m²
growth cycle	60–80 days
Temperature control range	16–22 ℃（±1 ℃）
relative humidity	65%–80% RH
beam	LED 220–380 μmol/(m²·s)
EC / pH	1.8–2.2 mS/cm ｜ 5.8–6.5
installed power	12–16 kW
source	380 V / 50 Hz Three-phase

IV. System Configuration

Deep liquid flow cultivation tank, transplanting cups and cover plate, circulation aeration pump set, nutrient solution disinfection module, automatic EC/pH fertilization system, full-spectrum LED lighting system, constant-temperature fresh air supply and dehumidification unit, intelligent control cabinet.

V. Applicable Varieties

Various celery varieties, including celery, Chinese celery, and scallion celery.

VI.适用场景

Stable urban celery supply chain; supporting processing infrastructure for fresh-cut vegetables; ingredient supply base for restaurant chains.

VII. Delivery and Installation

Whole crates are shipped from the factory; commissioning is completed within 4 working days following on-site hoisting and electrical connection; long-term nutrient management and pest/disease prevention guidance are also provided.
